Products
Pferd

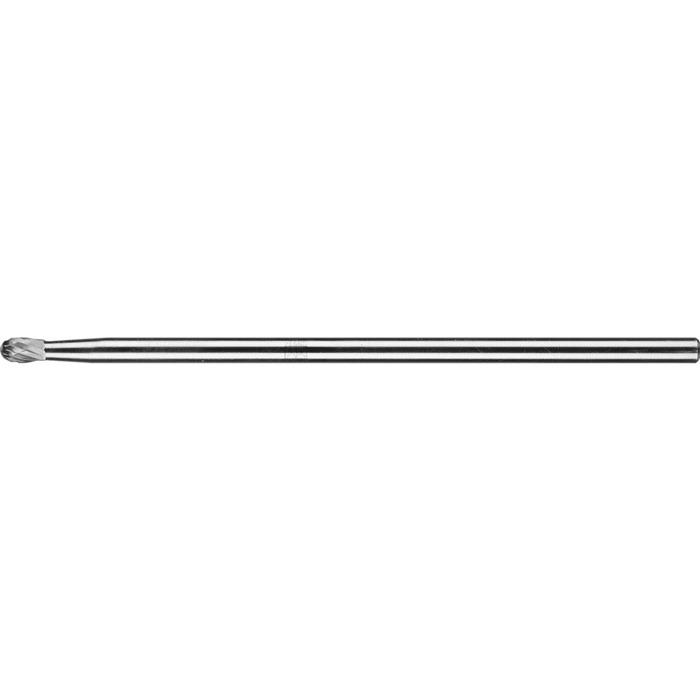

Carbide burr TRE 0610/6 Z3 PLUS SL150

Ø 6 mm x L 10 mm Shank Ø 6 mm Drop shape, horse
Item-no.: 1355872Supplier number: 21134827customs tariff number: 82077010EAN: 4007220090817

Quantity: ​​ 1 PiecePackable
Your price: Price on request
Short-term Sourcing

Description
Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Oval burr according to DIN 8032 with cut conforming to DIN 8033. Tungsten carbide burrs with a long shank are ideal for efficiently machining small, hard-to-reach areas of components. They can be shortened if required. This version has a long steel shank.
Attributes
Corner design radius
2.8 mm
Length, toothed
10 mm
Length, total
160 mm
RPM bis, rost- und säurebeständige Stähle
15000 RPM
RPM up to, grey cast iron, white cast iron
15000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
15000 RPM
RPM up to, soft non-ferrous metals
15000 RPM
RPM up to, steels up to 1,200 N/mm²
15000 RPM
Series
byly_HM_TRE_211
Toothing
3 PLUS
Ø External metric
6 mm
Ø Shaft metric
6 mm
