Description

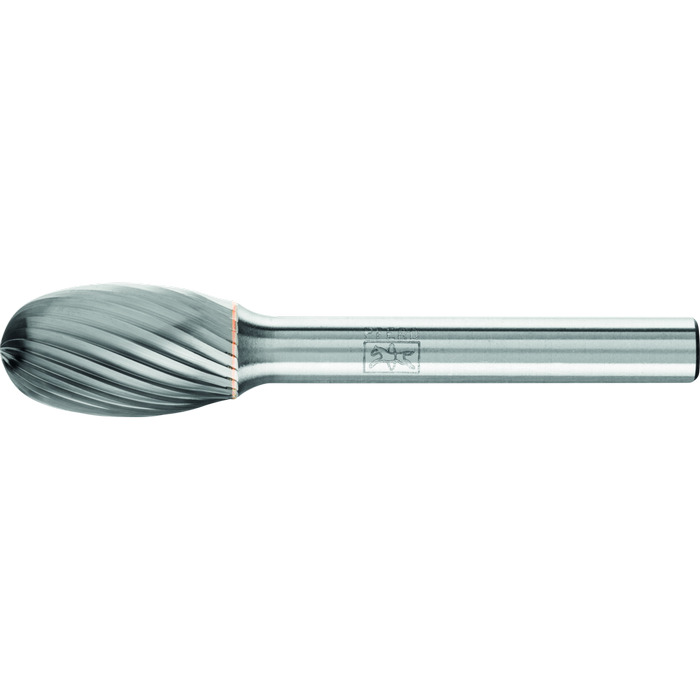

Cut 3 is especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate and achieves a good surface. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Oval burr according to DIN 8032 with cut conforming to DIN 8033.
Attributes
Corner design radius
5 mm
Length, toothed
20 mm
Length, total
60 mm
RPM from, grey cast iron, white cast iron
12000 RPM
RPM from, hardened and tempered steels over 1,200 N/mm²
7000 RPM
RPM from, stainless and acid-resistant steels
7000 RPM
RPM of, hard non-ferrous metals
7000 RPM
RPM of, soft non-ferrous metals
12000 RPM
RPM up to, grey cast iron, white cast iron
16000 RPM
RPM up to, hard non-ferrous metals
9000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
9000 RPM
RPM up to, soft non-ferrous metals
16000 RPM
RPM up to, stainless and acid-resistant steels
9000 RPM
Series
byly_HM_TRE_211
Toothing
3
Ø External metric
12 mm
Ø Shaft metric
6 mm
