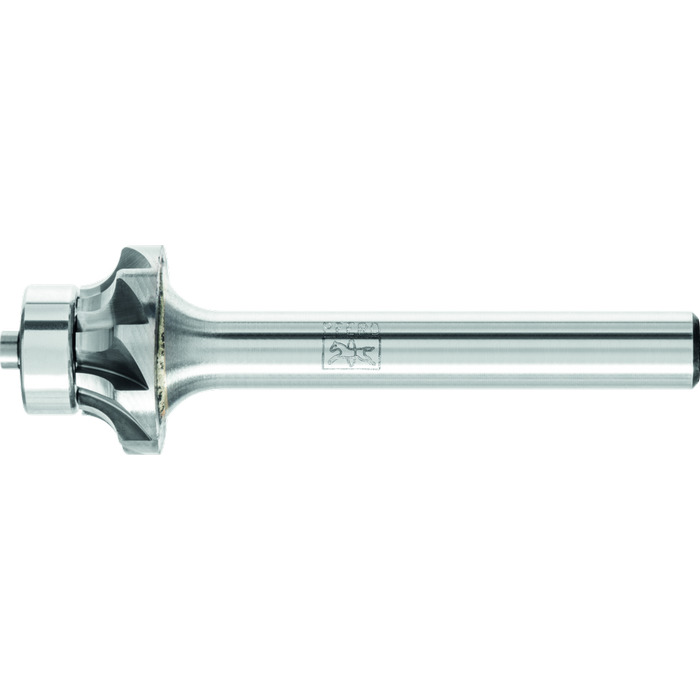

Carbide burr V 1612/6 EDGE R3.0
Ø 16 mm x L 12 mm Shank Ø 6 mm for rounding off, horseItem-no.: 1230649Supplier number: 21152936EAN: 4007220952412
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description
Tungsten carbide burrs with the EDGE cut have been especially developed for defined work on edges. The special design allows the burr to run directly along the edges without damaging the workpiece. In just one step, it is possible to achieve precise edge shapes. Among other things, rounding edges is a precautionary measure for anti-corrosion protection according to: ISO 129443, ISO 85013, SOLAS XII/6.3 (Ref. T4/3.01 MSC.1/Circ.1198). Concave radius burrs for the production of precise radii. Suitable for the production and processing of 3 mm outer radii.
Attributes
Corner design radius
3 mm
Length, body
12 mm
Length, toothed
3 mm
Length, total
52 mm
PFERD type
V 1612/6 EDGE R3,0
RPM from, grey cast iron, white cast iron
12000 RPM
RPM from, hardened and tempered steels over 1,200 N/mm²
12000 RPM
RPM from, high-temperature resistant materials
5000 RPM
RPM from, steels up to 1,200 N/mm²
12000 RPM
RPM of, hard non-ferrous metals
5000 RPM
RPM of, soft non-ferrous metals
12000 RPM
RPM up to, grey cast iron, white cast iron
18000 RPM
RPM up to, hard non-ferrous metals
7000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
15000 RPM
RPM up to, high-temperature resistant materials
9000 RPM
RPM up to, soft non-ferrous metals
18000 RPM
RPM up to, steels up to 1,200 N/mm²
18000 RPM
Series
byly_HM_V_2115
Toothing
EDGE
Ø Ball bearing
10 mm
Ø External metric
16 mm
Ø Shaft metric
6 mm
