Description

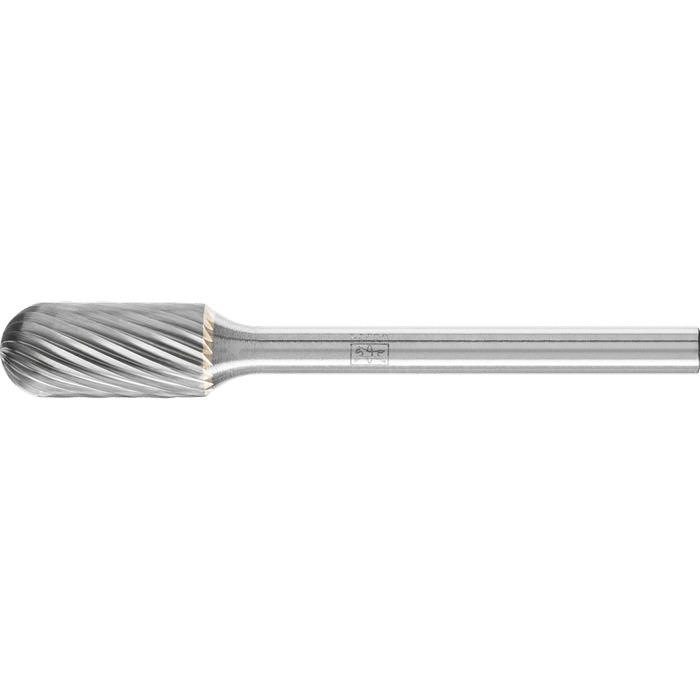

Cut 5 is especially well-suited to fine machining of cast iron, steel, stainless steel (INOX) and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. It achieves a good surface. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Cylindrical burr with radius end according to DIN 8032 with cut conforming to DIN 8033. Combination of cylindrical and ball-shaped geometries.
Attributes
Cutting material
Carbide
Form
WRC
Head length
13 mm
Length, toothed
13 mm
Length, total
43 mm
RPM from, hardened and tempered steels over 1,200 N/mm²
19000 RPM
RPM from, high-temperature resistant materials
19000 RPM
RPM from, stainless and acid-resistant steels
19000 RPM
RPM from, steels up to 1,200 N/mm²
24000 RPM
RPM of, hard non-ferrous metals
19000 RPM
RPM up to, hard non-ferrous metals
24000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
24000 RPM
RPM up to, high-temperature resistant materials
32000 RPM
RPM up to, stainless and acid-resistant steels
24000 RPM
RPM up to, steels up to 1,200 N/mm²
32000 RPM
Series
byly_HM_WRC_21
Shaft-Ø
3 mm
Toothing
5
Toothing
5
Ø
6 mm
Ø External metric
6 mm
Ø Shaft metric
3 mm
