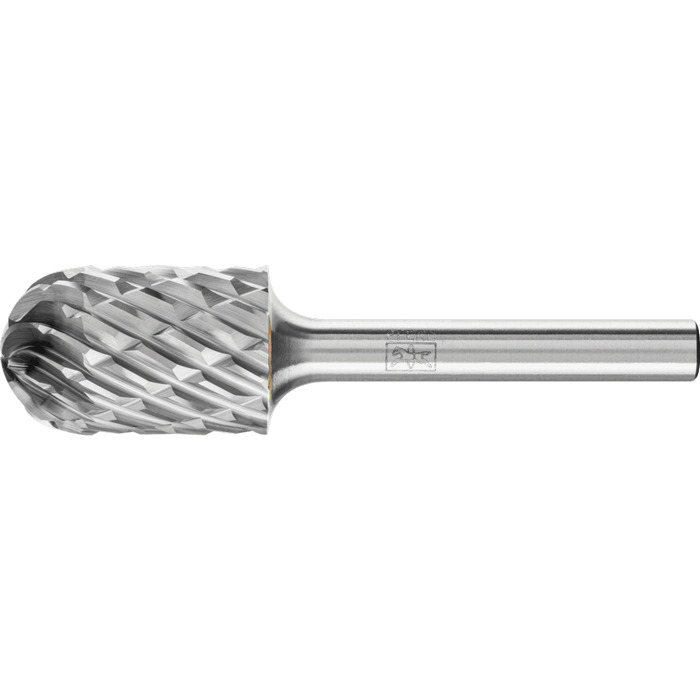

Carbide burr WRC 1625/6 STEEL
Ø 16 mm x L 25 mm Shank Ø 6 mm Round roller mould, horseItem-no.: 1234864Supplier number: 21105487customs tariff number: 82077010EAN: 4007220003022
Quantity:
1 PiecePackable
Price and stock visible after login
Description
With the innovative STEEL cut, PFERD has developed unique burrs for working with steel and cast steel. They feature tangibly increased aggressiveness and good guidance. They thus ensure safe and precise work. Thanks to their extremely high stock removal rate, burrs with the STEEL cut help users save considerable time when working, thus making them an economically efficient option. Cylindrical burr with radius end according to DIN 8032. Combination of cylindrical and ball-shaped geometries.
Attributes
Length, toothed
25 mm
Length, total
65 mm
RPM from, hardened and tempered steels over 1,200 N/mm²
9000 RPM
RPM from, steels up to 1,200 N/mm²
9000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
15000 RPM
RPM up to, steels up to 1,200 N/mm²
15000 RPM
Series
byly_HM_WRC_STEEL_2110
Toothing
STEEL
Ø External metric
16 mm
Ø Shaft metric
6 mm
