Pferd

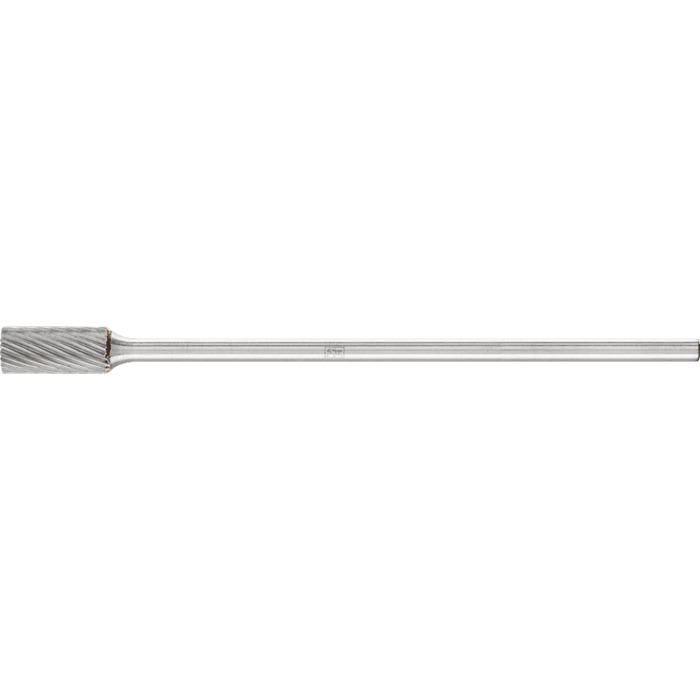

Carbide burr ZYA 0613/3 Z5 SL75

Ø 6 mm x L 13 mm Shank Ø 3 mm without face serration, horse
Item-no.: 1230662Supplier number: 21201457customs tariff number: 82077010EAN: 4007220779583

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description
Cut 5 is especially well-suited to fine machining of cast iron, steel, stainless steel (INOX) and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. It achieves a good surface. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Cylindrical burr according to DIN 8032 with cut conforming to DIN 8033. Tungsten carbide burrs with a long shank are ideal for efficiently machining small, hard-to-reach areas of components. They can be shortened if required. This version has a long steel shank.
Attributes
Length, toothed
13 mm
Length, total
88 mm
RPM up to, hard non-ferrous metals
15000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
15000 RPM
RPM up to, high-temperature resistant materials
15000 RPM
RPM up to, steels up to 1,200 N/mm²
15000 RPM
Series
byly_HM_ZYA
Toothing
5
Ø External metric
6 mm
Ø Shaft metric
3 mm
