Description

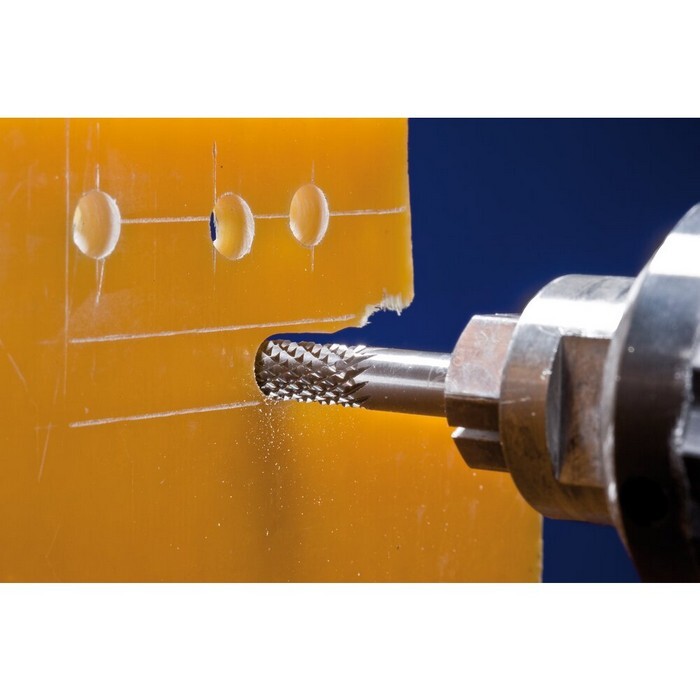

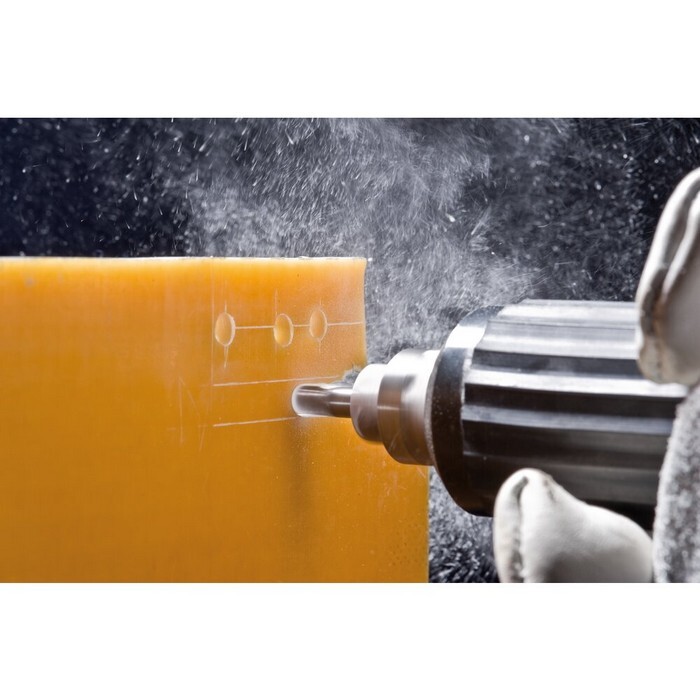

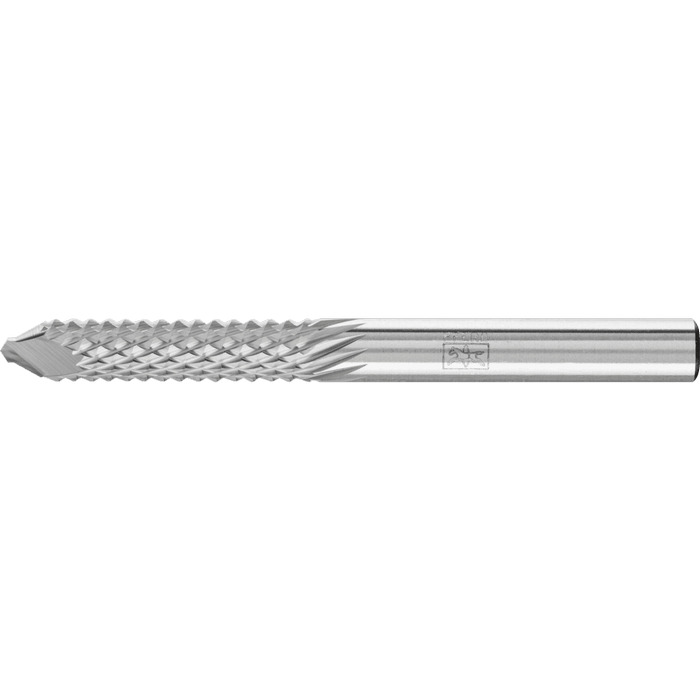

Tungsten carbide burrs with the FVKS cut are suitable for trimming and contour milling on a wide range of fibre-reinforced plastics (GRP/CRP). They are also suitable for general use on hard glass and carbon-fibre-reinforced duroplastics. Due to its high concentricity, the FVKS cut is suitable for tool machines and manual applications. It is characterized by smooth milling and produces a smooth cut edge. The FVKS cut is suitable for use on machines and robots with high feed rates. Cylindrical burr with centre drill. Burrs with a centre drill (ZBS) allow combined drilling and milling work.
Attributes
Length, toothed
25 mm
Length, total
65 mm
RPM of, thermoplastics, fibre-reinforced plastics (GRP/CFRP) fibre content greater than 40 %
24000 RPM
RPM up to, thermoplastics, fibre-reinforced plastics (GFK/CFK) fibre content greater than 40%
48000 RPM
Series
byly_HM_ZYA_FVK_2145
Toothing
FVKS
Version
ZBS
Ø External metric
6 mm
Ø Shaft metric
6 mm
Ø Tip
2.5 mm
