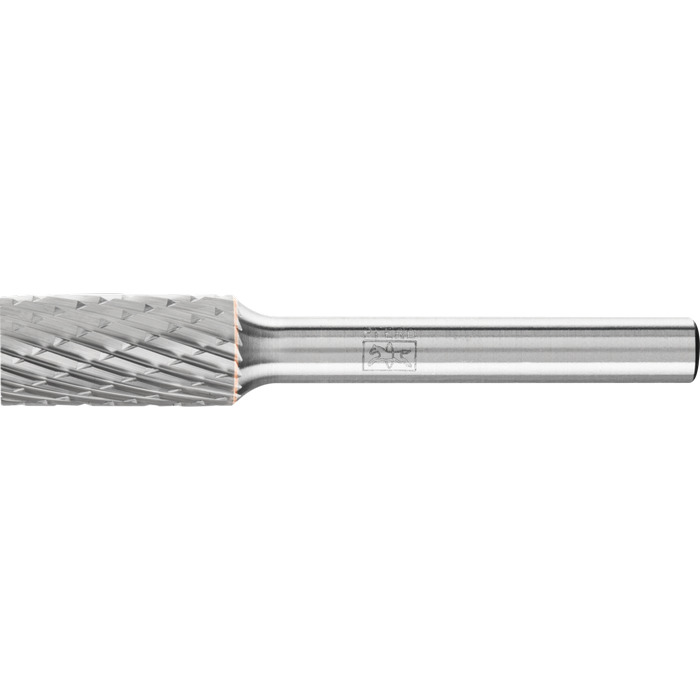

Carbide burr ZYA 1020/6 Z3 PLUS
Ø 10 mm x L 20 mm Shank Ø 6 mm without face serration, horseItem-no.: 1017888Supplier number: 21102126EAN: 4007220045879
Quantity:
1 PiecePackable
Item available in 14 variants:
Price and stock visible after login
Description
Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Cylindrical burr according to DIN 8032 with cut conforming to DIN 8033.
Attributes
Cutting material
Carbide
Form
ZYA
Head length
20 mm
Länge, Gesamt
60 mm
Länge, verzahnt
20 mm
RPM bis, Stähle bis 1.200 N/mm²
19000 RPM
RPM bis, gehärtete vergütete Stähle über 1.200 N/mm²
11000 RPM
RPM bis, graues Gusseisen, weißes Gusseisen
19000 RPM
RPM bis, hochwarmfeste Werkstoffe
14000 RPM
RPM bis, rost- und säurebeständige Stähle
11000 RPM
RPM von, Stähle bis 1.200 N/mm²
14000 RPM
RPM von, gehärtete vergütete Stähle über 1.200 N/mm²
8000 RPM
RPM von, graues Gusseisen, weißes Gusseisen
14000 RPM
RPM von, hochwarmfeste Werkstoffe
8000 RPM
RPM von, rost- und säurebeständige Stähle
8000 RPM
Series
byly_HM_ZYA
Shaft-Ø
6 mm
Toothing
3 PLUS
Total length
60 mm
Zahnung
3 PLUS
Ø
10 mm
Ø External metric
10 mm
Ø Schaft metrisch
6 mm
