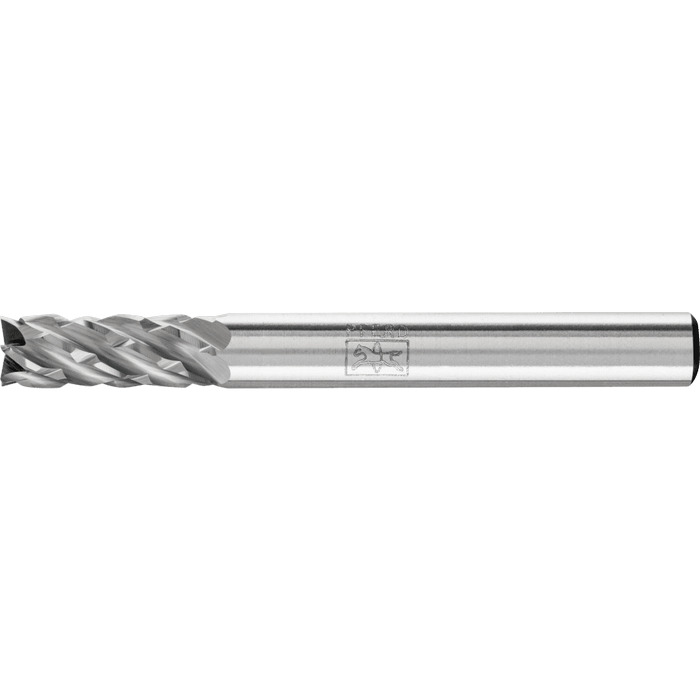

Carbide burr ZYAS 0616/6 STEEL
Ø 6 mm x L 16 mm Shank Ø 6 mm with face serration, horseItem-no.: 1230517Supplier number: 21100287customs tariff number: 82077010EAN: 4007220937259
Quantity:
1 PiecePackable
Price and stock visible after login
Description

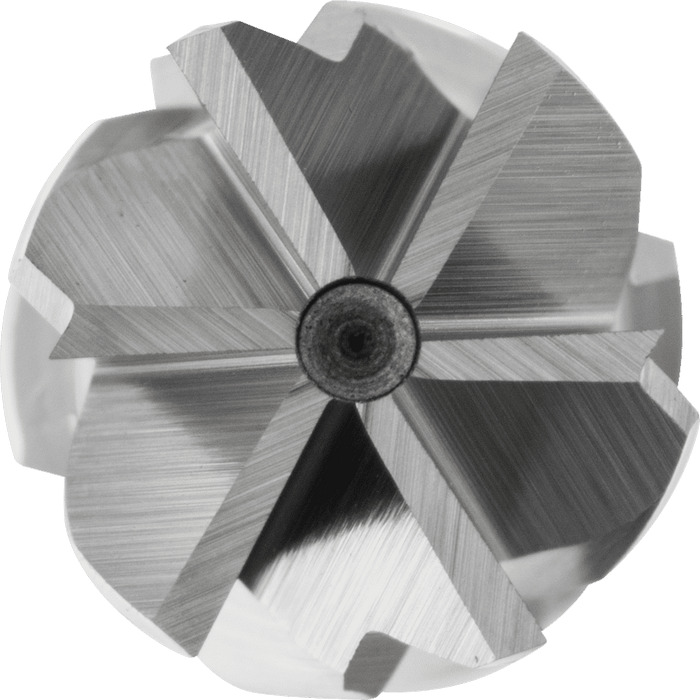

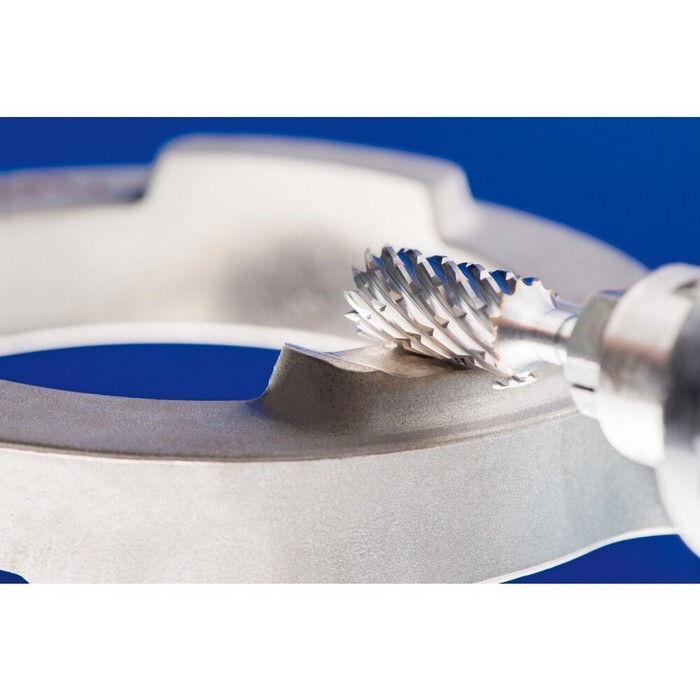

With the innovative STEEL cut, PFERD has developed unique burrs for working with steel and cast steel. They feature tangibly increased aggressiveness and good guidance. They thus ensure safe and precise work. Thanks to their extremely high stock removal rate, burrs with the STEEL cut help users save considerable time when working, thus making them an economically efficient option. Cylindrical burr according to DIN 8032. Shape ZYAS with circumferential and end cut.
Attributes
Length, toothed
16 mm
Length, total
55 mm
RPM from, hardened and tempered steels over 1,200 N/mm²
24000 RPM
RPM from, steels up to 1,200 N/mm²
24000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
40000 RPM
RPM up to, steels up to 1,200 N/mm²
40000 RPM
Series
byly_HM_ZYAS_STEEL_21100
Toothing
STEEL
Ø External metric
6 mm
Ø Shaft metric
6 mm
