Carbide copy burr
ZYA 0830/6 Z4 7MM KFS PferdItem-no.: 1454708Supplier number: 21101789customs tariff number: 82077010EAN: 4007220244913
Quantity:
1 PiecePackable
Price and stock visible after login
Description

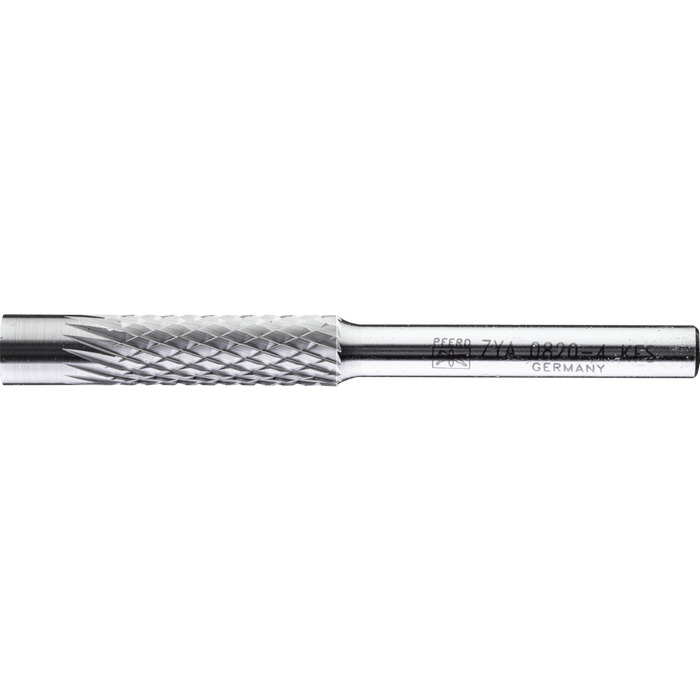

Tungsten carbide copy milling burrs by PFERD are the perfect tools for levelling elevations, such as weld seams. Thanks to the uncut area, the weld seam can be adjusted to the level of the surrounding surface without this being damaged. Copy milling burrs are used in particular in the repair of cutting and punching blades in tool and mould-making. Tungsten carbide copy milling burrs with cut 4 are designed for coarse stock removal. Cylindrical burr.
Attributes
Length, body
7 mm
Length, toothed
30 mm
Length, total
77 mm
Neu im Jahr
2021
RPM from, hardened and tempered steels over 1,200 N/mm²
10000 RPM
RPM from, high-temperature resistant materials
10000 RPM
RPM from, stainless and acid-resistant steels
10000 RPM
RPM of, hard non-ferrous metals
10000 RPM
RPM up to, hard non-ferrous metals
14000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
14000 RPM
RPM up to, high-temperature resistant materials
18000 RPM
RPM up to, stainless and acid-resistant steels
18000 RPM
Series
byly_HM_ZYA_KFS
Toothing
4
Ø External metric
8 mm
Ø Shaft metric
6 mm
