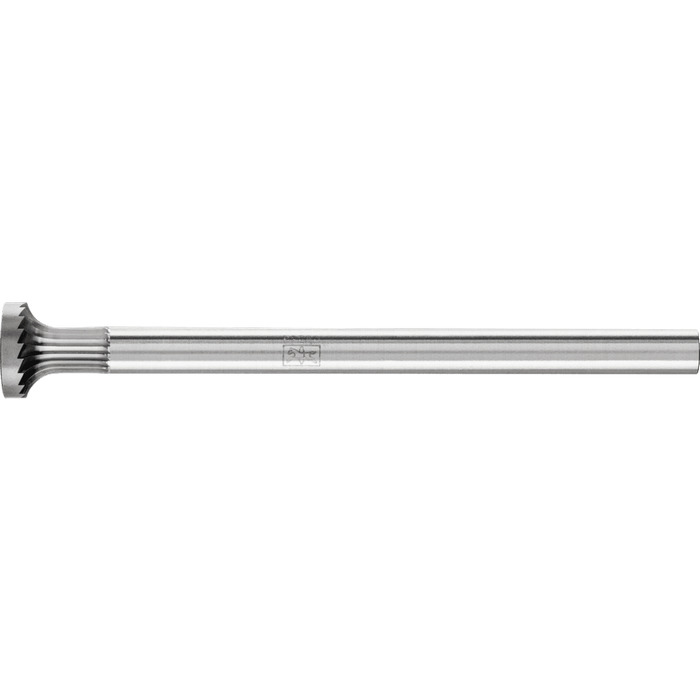

Carbide radius burr R 1618/8 SP
Ø 16 mm x L 18 mm Shank Ø 8 mm PferdItem-no.: 1017816Supplier number: 21143588customs tariff number: 82077010EAN: 4007220049167
Quantity:
1 PiecePackable
Price and stock visible after login
Description

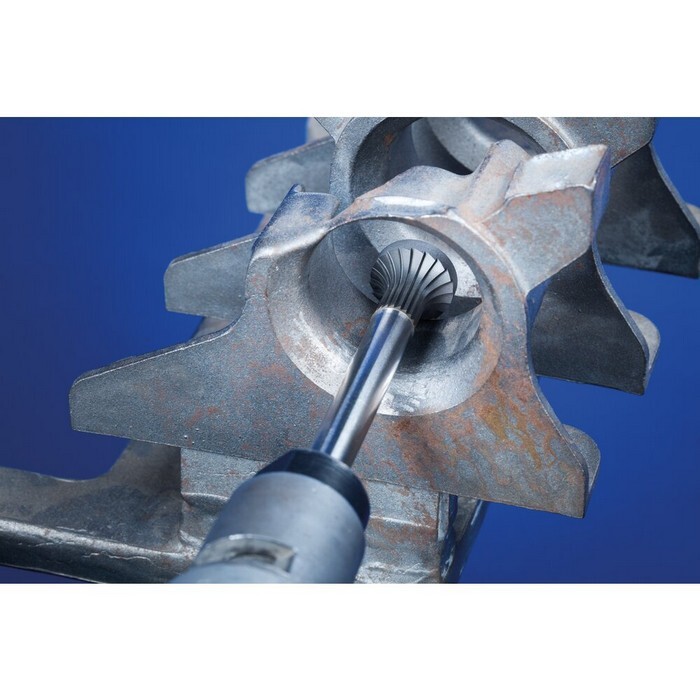

Radius burrs with a concave shape and special cut. Suitable for the production and processing of outer radii and rounded edges. Due to their special shapes, tungsten carbide burrs for flexible work on edges achieve almost precise chamfers or radii and can also be used flexibly in hard-to-reach areas. They are mainly used in steel and aluminium construction and have been specifically designed for chamfering, deburring and rounding of edges. Version with concave shape, tapered towards shank.
Attributes
Corner design radius
6 mm
Length, body
18 mm
Length, toothed
12 mm
Length, total
118 mm
RPM from, grey cast iron, white cast iron
9000 RPM
RPM from, hardened and tempered steels over 1,200 N/mm²
5000 RPM
RPM from, stainless and acid-resistant steels
5000 RPM
RPM from, steels up to 1,200 N/mm²
9000 RPM
RPM of, hard non-ferrous metals
5000 RPM
RPM of, soft non-ferrous metals
12000 RPM
RPM up to, grey cast iron, white cast iron
12000 RPM
RPM up to, hard non-ferrous metals
7000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
7000 RPM
RPM up to, soft non-ferrous metals
18000 RPM
RPM up to, stainless and acid-resistant steels
7000 RPM
RPM up to, steels up to 1,200 N/mm²
12000 RPM
Series
byly_HM_R_SP_2114
Toothing
Special toothing (SP)
Ø External metric
16 mm
Ø Shaft metric
8 mm
