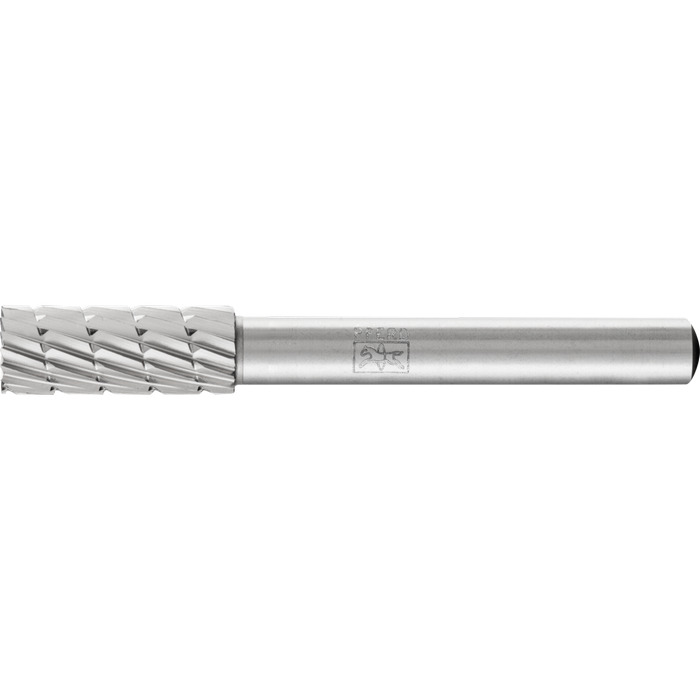

HSS burr A 0820ST/6 Z3
Ø 8 mm x L 20 mm Shank Ø 6 mm with face serration, horseItem-no.: 1017483Supplier number: 22405036customs tariff number: 82077031EAN: 4007220058640
Quantity:
1 Piece
=
1 PackagingPackable
Item available in 7 variants:
Price and stock visible after login
Description
Cut 3 has chip breakers and is especially well-suited to machining of steel, cast steel and cast iron. It is used in a rotational speed range of 1,200 to 7,900 RPM, depending on the burr diameter. Cylindrical burr with end cut.
Attributes
Cutting material
HSS
Form
ZYAS
Head length
20 mm
Length, toothed
20 mm
Length, total
60 mm
RPM from, grey cast iron, white cast iron
3200 RPM
RPM from, steels up to 1,200 N/mm²
3200 RPM
RPM up to, grey cast iron, white cast iron
4000 RPM
RPM up to, steels up to 1,200 N/mm²
4000 RPM
Series
byly_HSS_A_2240
Shaft-Ø
6 mm
Toothing
3
Toothing
3
Total length
60 mm
Ø
8 mm
Ø External metric
8 mm
Ø Shaft metric
6 mm
