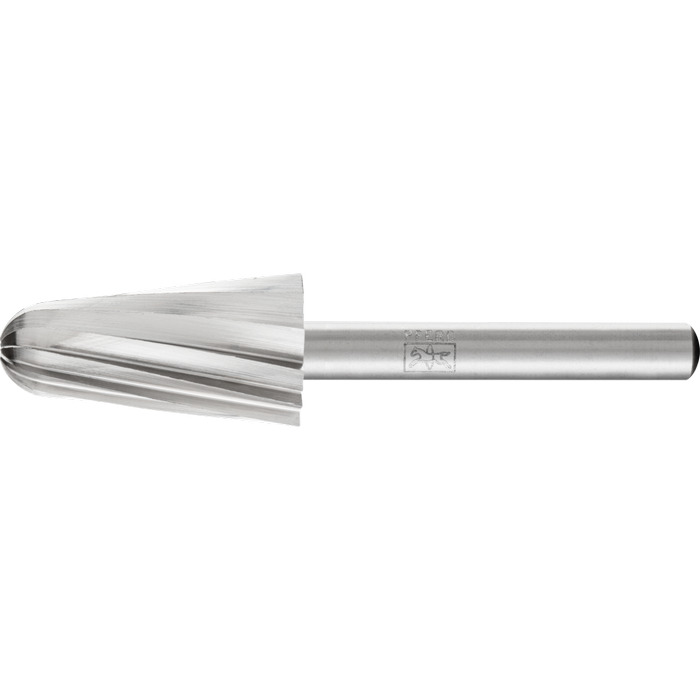

HSS burr L 1630/6 ALU
Ø 16 mm x L 30 mm Shank Ø 6 mm Round cone shape, horseItem-no.: 1229480Supplier number: 22451816customs tariff number: 82077031EAN: 4007220059616
Quantity:
1 Piece
=
1 PackagingPackable
Price and stock visible after login
Description

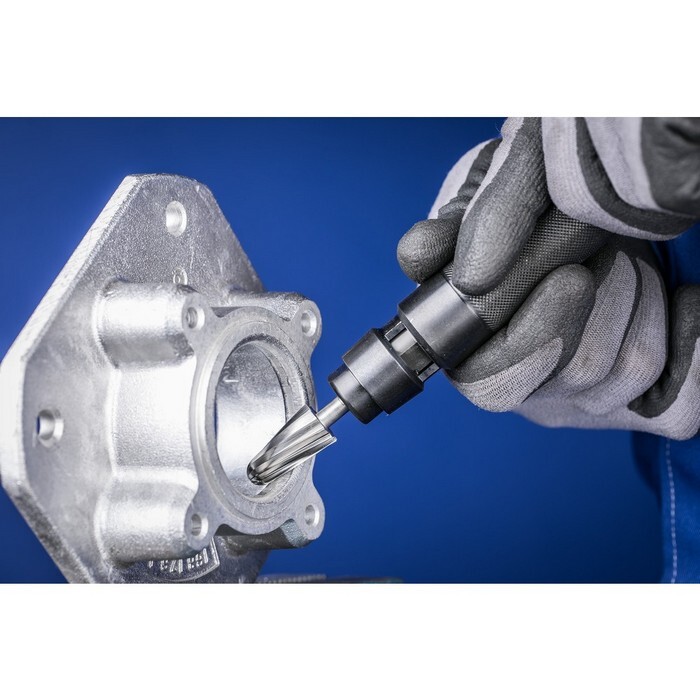

The ALU cut is particularly well-suited for machining soft non-ferrous metals, brass, copper, aluminium alloys, plastics, fibre-reinforced plastics and rubber. HSS rotary cutters with the ALU cut can be used in a rotational speed range of 4,000 to 6,000 RPM depending on the rotary cutter diameter. Conical burr with radius end.
Attributes
Angle
14 °
Corner design radius
4.8 mm
Cutting material
HSS
Form
L1630
Head length
30 mm
Length, toothed
30 mm
Length, total
70 mm
RPM of, soft non-ferrous metals
4000 RPM
RPM of, thermoplastics, fibre-reinforced plastics (GRP/CFRP) fibre content less than 40%
4000 RPM
RPM up to, soft non-ferrous metals
6000 RPM
RPM up to, thermoplastics, fibreserv. (GFK/CFK) fibre content less than 40%
6000 RPM
Series
byly_HSS_L_2245
Shaft-Ø
6 mm
Toothing
ALU
Toothing
ALU
Total length
70 mm
Ø
16 mm
Ø External metric
16 mm
Ø Shaft metric
6 mm
