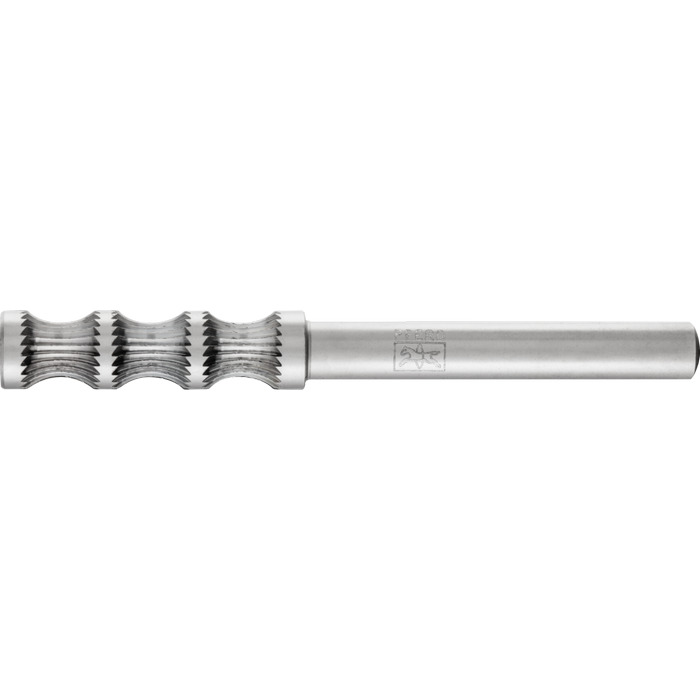

HSS burr 156/6 SP
Ø 8 mm x L 30 mm Shank Ø 6 mm PferdItem-no.: 1017504Supplier number: 22215656EAN: 4007220057964
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Due to their 3 identical cutting areas, this HSS edge trimming cutter provides three milling areas. Cylindrical rotary cutter with triple, concave contour and special cut, with a shank diameter of 6 mm. Suitable for edge breaking to a defined radius.
Attributes
Corner design radius
5 mm
Length, toothed
30 mm
Length, total
70 mm
RPM from, grey cast iron, white cast iron
2400 RPM
RPM from, steels up to 1,200 N/mm²
2400 RPM
RPM up to, grey cast iron, white cast iron
3200 RPM
RPM up to, steels up to 1,200 N/mm²
3200 RPM
Toothing
Special toothing (SP)
Ø External metric
8 mm
Ø Shaft metric
6 mm
