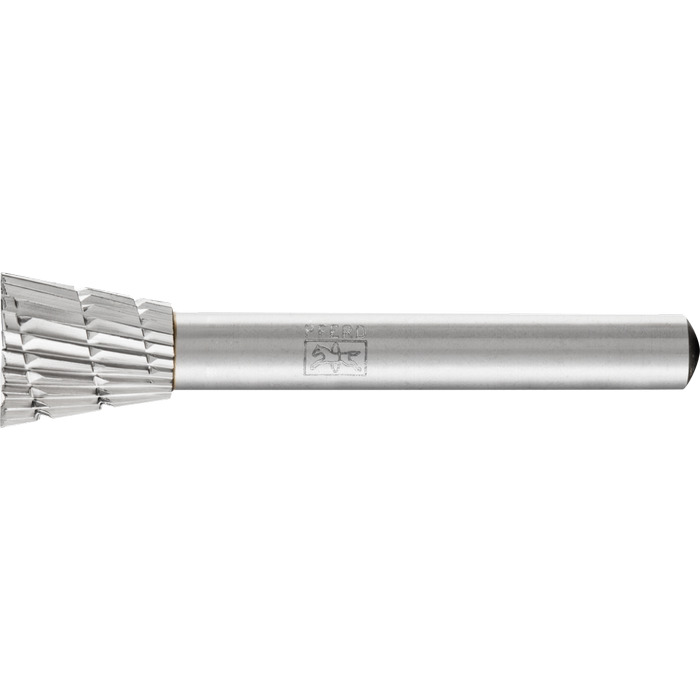

HSS angled burr W 1213ST/6 Z3

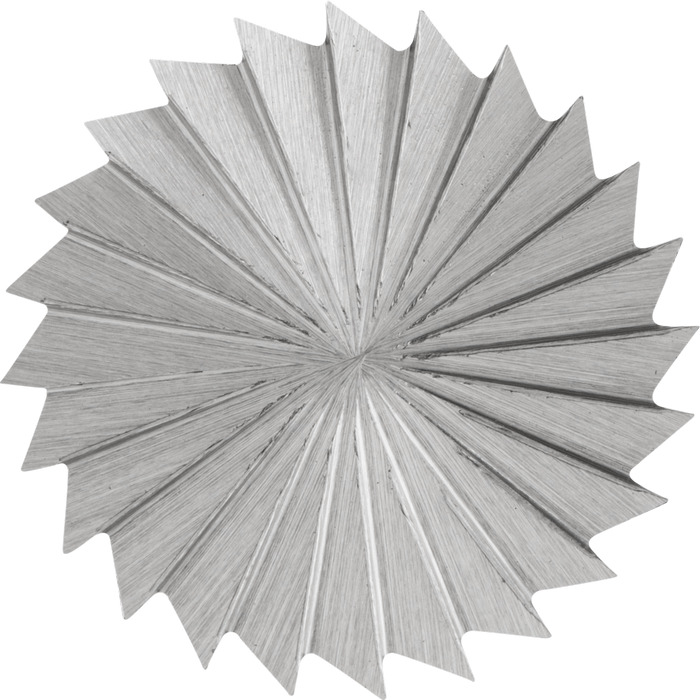

Ø 12 mm x L 13 mm Shank Ø 6 mm with face serration, horseItem-no.: 1229488Supplier number: 22471236EAN: 4007220059784
Quantity:
1 Piece
=
1 PackagingPackable
Price and stock visible after login
Description
Cut 3 has chip breakers and is especially well-suited to machining of steel, cast steel and cast iron. It is used in a rotational speed range of 1,200 to 7,900 RPM, depending on the burr diameter. Inverted cone-shaped rotary cutter, tapered towards the shank, with end cut.
Attributes
Angle
20 °
Length, toothed
13 mm
Length, total
53 mm
RPM from, grey cast iron, white cast iron
2200 RPM
RPM from, steels up to 1,200 N/mm²
2200 RPM
RPM up to, grey cast iron, white cast iron
2700 RPM
RPM up to, steels up to 1,200 N/mm²
2700 RPM
Toothing
3
Ø External metric
12 mm
Ø Shaft metric
6 mm
