Ganter

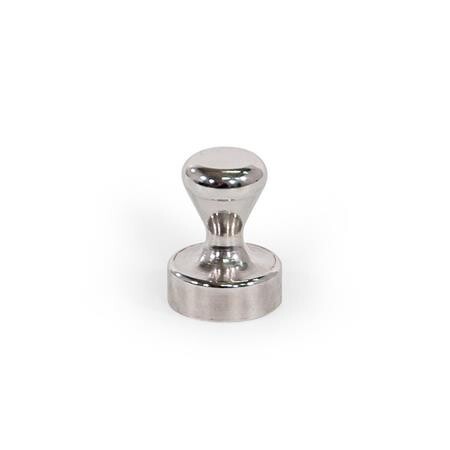

Holding magnet

GN 53.4-ND-ST-12-A
ST - Steel
Item-no.: 1486355Supplier number: 53.4-ND-ST-12-AEAN: 4045525761025

Quantity: ​​ 1 PiecePackable
Item available in 2 variants:
Short-term Sourcing

Description
Magnets GN 53.4 work in combination with the ergonomic nickel-plated steel handle as a system for holding documents, templates, drawings etc. that are used in technical environments. The neodymium magnet keeps the required contact diameter small while also supplying a high retaining force. Type B also features a rubber pad to protect sensitive surfaces from damage and ensure low noise on contact.
Attributes
Form
A - without rubber pad
Form B
17.5
Material
ST - Steel
Nominal holding forces in N Form A
55
RoHS
Ja
Solenoid material
ND - NdFeB
Weight
0.006 kg
d1
12
d2
9
h1 Form A
16
h2 Form A
4.5
