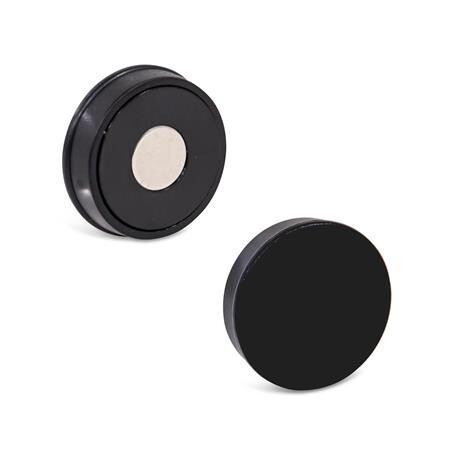

Holding magnet with plastic housing
GN 53.1-ND-25-SW blackND - NdFeB
Item-no.: 1486331Supplier number: 53.1-ND-25-SWcustoms tariff number: 85051110EAN: 4045525759169
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Magnets GN 53.1 work in combination with the flat, disk-shaped plastic housing as a system for holding documents, templates, drawings etc. that are used in technical environments. The neodymium magnets used are characterized by a high magnetic force.
Attributes
Colour
SW - black, RAL 9004
Diameter d
25
Material
ND - NdFeB
Nominal holding forces in N
14 N
RoHS
Ja
Solenoid material
ND - NdFeB
Weight
0.005 kg

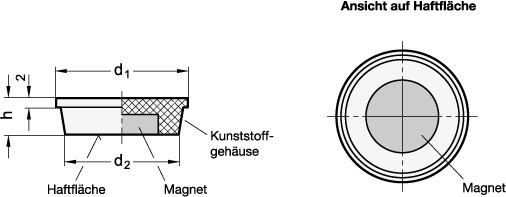

d2
22
h
8.5
