Ganter

Holding magnet

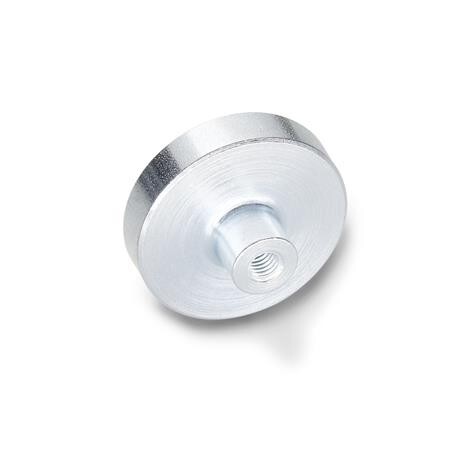

GN 50.2-ND-40-8-M6 Disc shape with threaded bush
Item-no.: 1484853Supplier number: 50.2-ND-40-8-M6customs tariff number: 85051110EAN: 4045525711549

Quantity: ​​ 1 PiecePackable
Item available in 41 variants:
Short-term Sourcing

Description
Retaining magnets GN 50.2 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
Attributes
Diameter d
40
Gewinde d2 (SC / ND)
M 6
Höhe h (SC / ND)
8
L
10
ND
670
RoHS
Ja
Solenoid material
ND - NdFeB
Weight
0.080 kg
d3
10
t
8
