Holding magnet
GN 50.3-HF-57-M6 Disc shape with threaded pinItem-no.: 1484962Supplier number: 50.3-HF-57-M6customs tariff number: 85051190EAN: 4045525723498
Quantity:
1 PiecePackable
Item available in 32 variants:
Price and stock visible after login
Description

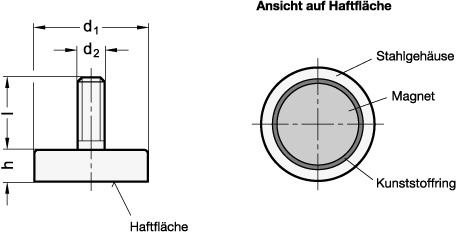

Retaining magnets GN 50.3 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
Attributes
Diameter d
57
Length l
8
Magnet
HF - Hard ferrite
Nominal holding forces in NHF
280
RoHS
Ja
Screw thread d2 (HF)
M 6
Solenoid material
HF - Hard ferrite
Thread length
10.5
Weight
0.146 kg
