Holding magnet
GN 50.6-HF-25-A Disc shape with hookItem-no.: 1350597Supplier number: 50.6-HF-25-Acustoms tariff number: 85051190EAN: 4045525082601
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Retaining magnets GN 50.6 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
Attributes
Diameter d
25
Form
A - with hook
Form B
12.5
Nennhaftkräfte
40 N
Nominal holding forces in N
40
RoHS
Ja
Solenoid material
HF - Hard ferrite
Weight
0.023 kg

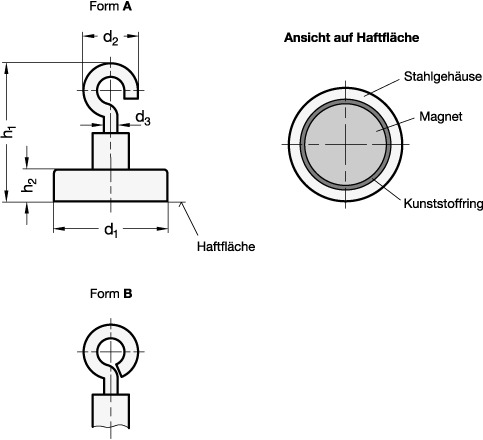

d2 Form A
13.5
d3
3.5
h1 Form A
30.5
h2
7
