Ganter

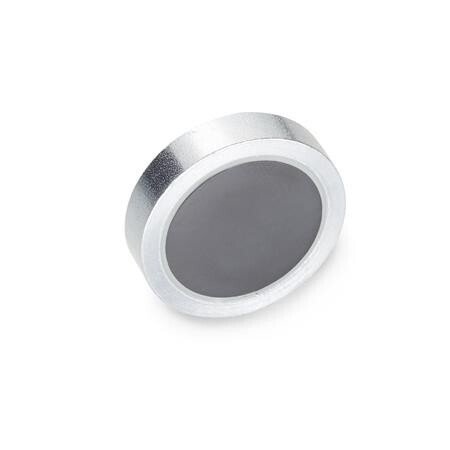

Holding magnet, disc shape

GN 50.1-HF-10-4,5
Item-no.: 1203745Supplier number: 50.1-HF-10-4,5customs tariff number: 85051910EAN: 4045525663077

Quantity: ​​ 1 PiecePackable
Item available in 32 variants:
Short-term Sourcing

Description

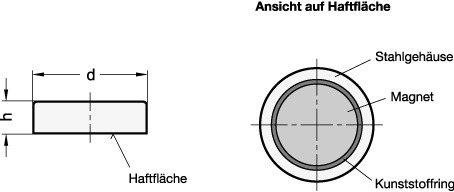

Retaining magnets GN 50.1 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface. The retaining magnets are to fasten simply and securely by side clamping, e.g. with a grub screw GN 913.2.
Attributes
Diameter d
10
Nominal holding forces in NHF
4
RoHS
Ja
Solenoid material
HF - Hard ferrite
Toleranzen HF
±0,1
Weight
0.002 kg
h
4.5
