Holding magnet, disc shape
GN 50.25-HF-32-7-M5 Stainless steel, with threaded holeItem-no.: 1203764Supplier number: 50.25-HF-32-7-M5customs tariff number: 85051190EAN: 4045525663787
Quantity:
1 PiecePackable
Price and stock visible after login
Description

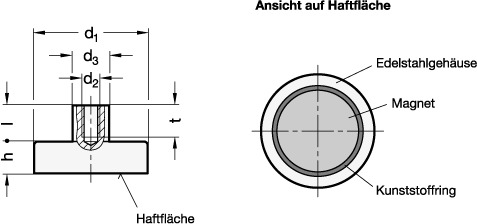

Retaining magnets GN 50.25 are combined with the stainless steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
Attributes
Diameter d
32
Length l
9
Nominal holding forces in N
64 N
RoHS
Ja
Screw thread
M 5
Solenoid material
HF - Hard ferrite
Weight
0.031 kg
d3
8
h
7
t
9
