Holding magnet, disc shape
GN 50.3-HF-47-M6 Threaded studItem-no.: 1203786Supplier number: 50.3-HF-47-M6customs tariff number: 85051190EAN: 4045525663411
Quantity:
1 PiecePackable
Item available in 32 variants:
Price and stock visible after login
Description

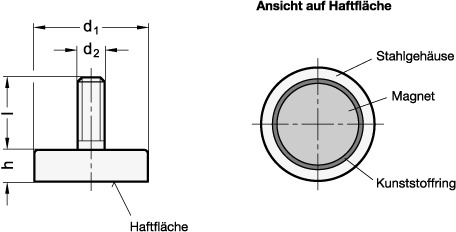

Retaining magnets GN 50.3 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
Attributes
Diameter d
47
Length l
8
Magnet
HF - Hard ferrite
Nominal holding forces in NHF
180
RoHS
Ja
Screw thread d2 (HF)
M 6
Solenoid material
HF - Hard ferrite
Thread length
9
Weight
0.085 kg
