Holding magnet, disc shape
GN 50.3-ND-16-M6 Threaded studItem-no.: 1150470Supplier number: 50.3-ND-16-M6customs tariff number: 85051110EAN: 4045525663459
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Retaining magnets GN 50.3 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

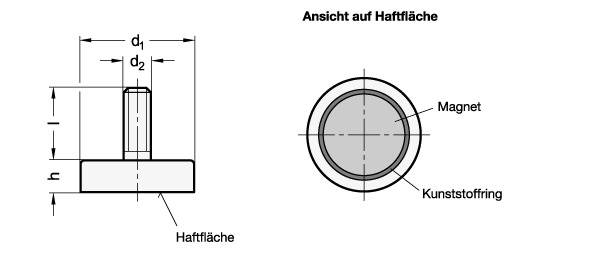

Attributes
Diameter d
16
Length l
8
Magnet
ND - NdFeB
ND
95
RoHS
Ja
Screw thread d2 (ND)
M 6
Solenoid material
ND - NdFeB
Weight
0.007 kg
h
4.5
