Holding magnet, disc shape
GN 50.3-ND-32-M6 Threaded studItem-no.: 1203792Supplier number: 50.3-ND-32-M6customs tariff number: 85051110EAN: 4045525663480
PU (PU NW): 5 PieceQuantity:
1 PiecePackable
Item available in 32 variants:
Price and stock visible after login
Description

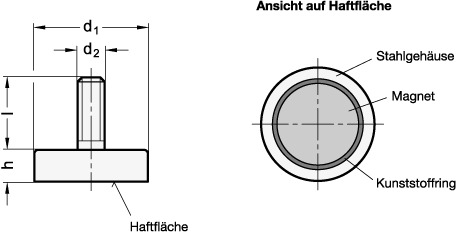

Retaining magnets GN 50.3 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
Attributes
Ausführung
Neodym, Eisen, Bor ND temperaturbeständig bis 80° C
Diameter d
32
Length l
10
Magnet
ND - NdFeB
Material
Neodym, Eisen, Bor ND
ND
350
Nennhaftkraft
350 N/cm²
RoHS
Ja
Screw thread d2 (ND)
M 6
Solenoid material
ND - NdFeB
Weight
0.043 kg
h
7
