Products
Ganter

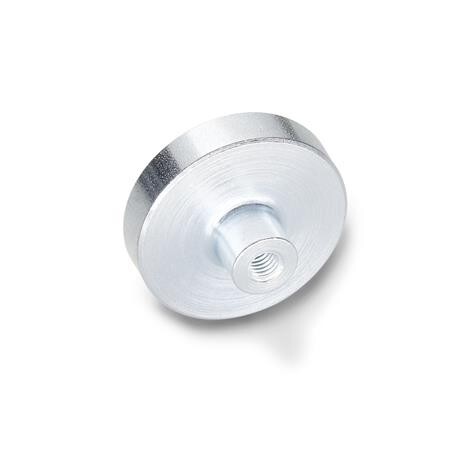

Haltemagnet, Scheibenform, Gewindebuchse

GN 50.2-HF-50-10-M6
Item-no.: 1162992Supplier number: 50.2-HF-50-10-M6customs tariff number: 85051190EAN: 4045525663565

Quantity: ​​ 1 PiecePackable
Item available in 41 variants:
Short-term Sourcing

Description
Retaining magnets GN 50.2 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
Attributes
Diameter d
50
Height h (HF)
10
L
12
Nominal holding forces in NHF
220
RoHS
Ja
Screw thread d2 (HF)
M 6
Solenoid material
HF - Hard ferrite
Weight
0.120 kg
d3
12
t
10
