Haltemagnet, Scheibenform, Gewindebuchse
GN 50.2-ND-25-7-M4Item-no.: 1203771Supplier number: 50.2-ND-25-7-M4customs tariff number: 85051110EAN: 4045525663756
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Retaining magnets GN 50.2 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

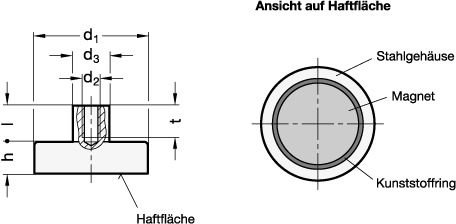

Attributes
Diameter d
25
Gewinde d2 (SC / ND)
M 4
Höhe h (SC / ND)
7
L
8
ND
200
RoHS
Ja
Solenoid material
ND - NdFeB
Weight
0.028 kg
d3
8
t
7
