Holding magnet, disc shape, With hook
GN 50.6-HF-36-AItem-no.: 1484972Supplier number: 50.6-HF-36-Acustoms tariff number: 85051190EAN: 4045525723597
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Retaining magnets GN 50.6 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
Attributes

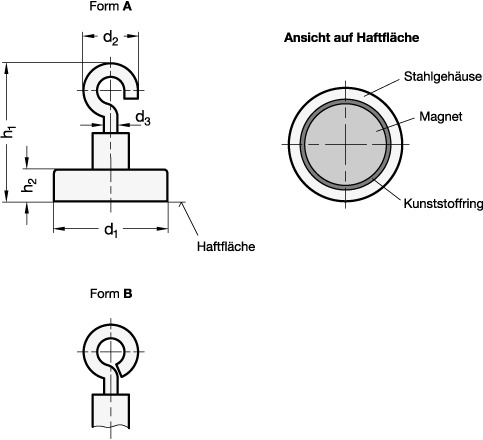

Diameter d
36
Form
A - with hook
Form B
12.5
Nennhaftkräfte
100 N
Nominal holding forces in N
100
RoHS
Ja
Solenoid material
HF - Hard ferrite
Weight
0.045 kg
d2 Form A
13.5
d3
3.5
h1 Form A
32
h2
7.7
