Holding magnet, bar shape
GN 52.4-AN-6-M3-E Threaded studItem-no.: 1204558Supplier number: 52.4-AN-6-M3-EEAN: 4045525665323
Quantity:
1 PiecePackable
Item available in 22 variants:
Price and stock visible after login
Description

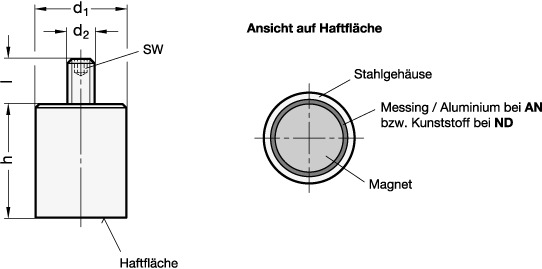

Retaining magnets GN 52.4 are combined with a steel housing and insulation of brass / aluminum or plastic into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
Attributes
Diameter d
6
Form
E - with threaded pin
Length l
7
ND
6
Nominal holding forces in NAN
2
RoHS
Ja
SW
1,5
Screw thread d2
M 3
Solenoid material
AN - AlNiCo
Weight
0.005 kg
h
20
