Haltemagnet, Stabform Mit Innengewinde
GN 52.3-AN-17-ZBItem-no.: 1484857Supplier number: 52.3-AN-17-ZBcustoms tariff number: 85051190EAN: 4045525711587
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description

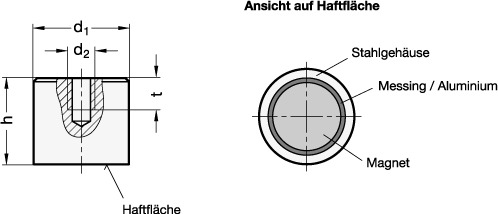

Retaining magnets GN 52.3, are combined with the zinc-plated or red-painted steel housing and insulation of brass/aluminum into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface. For easier handling and to avoid demagnetization, a galvanized iron plate protects the magnetic surface of the magnet during storage and transport.
Attributes
Diameter d
17
Nennhaftkräfte
26 N
Nominal holding forces in N
26
RoHS
Ja
Solenoid material
AN - AlNiCo
Surface
ZB - galvanised
Weight
0.029 kg
d2
M 6
h
16
t
5
