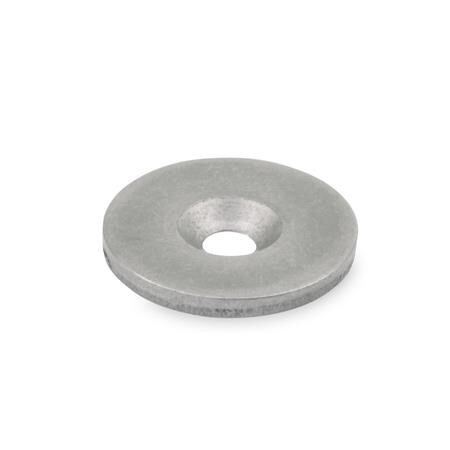

Retaining disc for holding magnets
GN 70-27-A-NI stainless steelNI - Stainless steel
Item-no.: 1218202Supplier number: 70-27-A-NIEAN: 4045525911819
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description
Stainless steel holding disks GN 70 are used as companion parts for retaining magnets when they are used in connection with non-magnetic materials. They can be fixed with countersunk screws e.g. DIN 7991, but also with any commercial wood or sheet metal countersunk screws.
Attributes
Diameter d
27
Form
A - flat, without stop edge
Material
NI - Stainless steel
RoHS
Ja
Weight
0.012 kg
d2
5.5
d3
11
s
3
