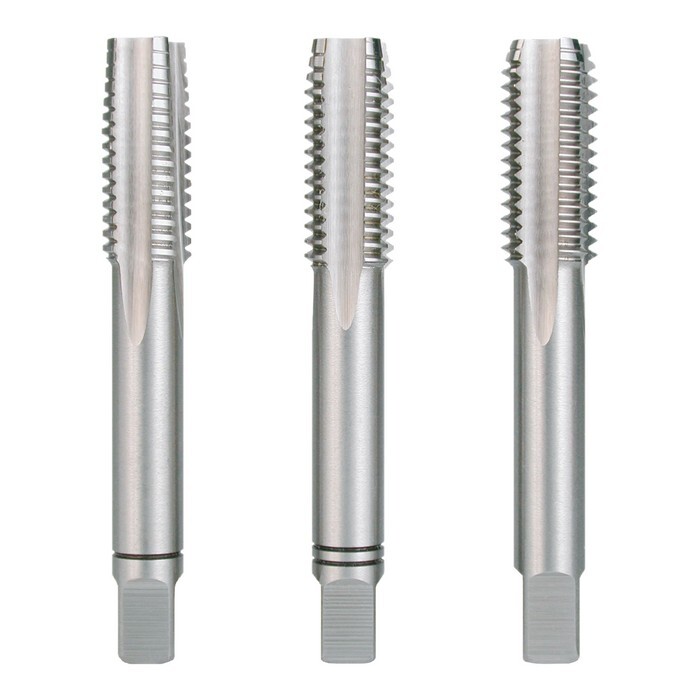

Hand tap set DIN 352
3-piece, HSS M 16x2.0 mm Ruko 230160HSS
Item-no.: 1015442Supplier number: 230160EAN: 4007140024114
Quantity:
1 Set
=
1 PiecePackable
Price and stock visible after login
Description
The hand tap consists of heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and low-alloyed steels up to a strength of 800 N/mm², malleable cast iron and non-ferrous metals. The thread is cut in three operation.
Attributes
Coat
Uncoated
Core hole diameter
14 mm
Cutting direction
right-hand cutting
DIN
352
Flank angle
60°
Length (battery)
80 mm
Material
HSS
Nominal thread size M
M 16
Series
RUKO043230
Shaft
Square shank
Spiral length
32 mm
Thread pitch
2 mm
Tolerance
ISO 2 6H
