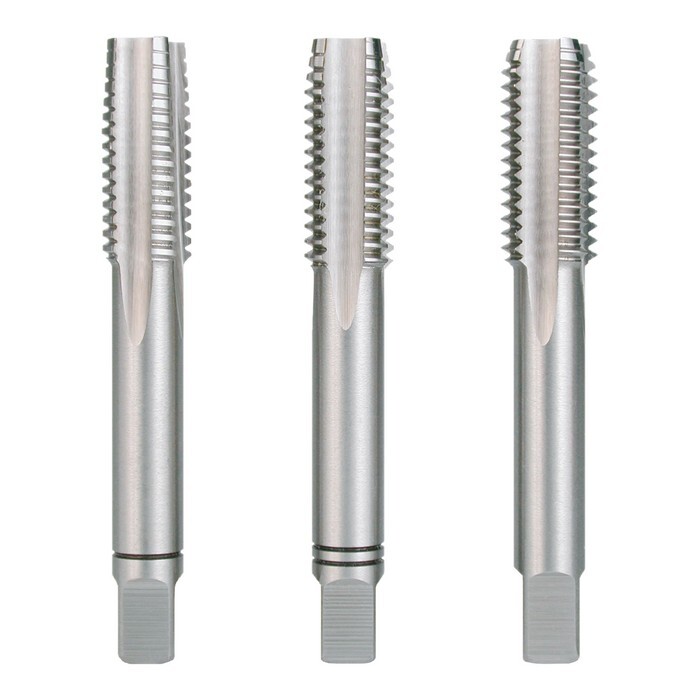

Hand tap set DIN 352
3-piece, HSS M30x3.5 mm Ruko 230300HSS
Item-no.: 1529379Supplier number: 230300EAN: 4007140094056
Quantity:
1 SetPackable
Price and stock visible after login
Description
The hand tap consists of heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and low-alloyed steels up to a strength of 800 N/mm², malleable cast iron and non-ferrous metals. The thread is cut in three operation.
Attributes
Coat
Uncoated
Core hole diameter
26,5 mm
Cutting direction
right-hand cutting
DIN
352
Flank angle
60°
Length (battery)
125 mm
Material
HSS
Nominal thread size M
M 30
Series
RUKO043230
Shaft
Square shank
Spiral length
56 mm
Thread pitch
3,5 mm
Tolerance
ISO 2 6H
