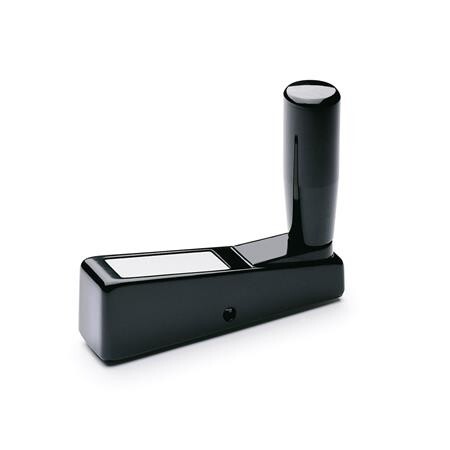

Hand crank
GN 510-65-B8 Elesa 38001KU - Kunststoff
Item-no.: 1204108Supplier number: 510-65-B8customs tariff number: 84879090EAN: 4045525267527
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Cranked handles GN 510 allow fine adjustment. These cranked handles are fitted to shaft with a cross pin. To simplify the installation there is a centred drilling on both sides.

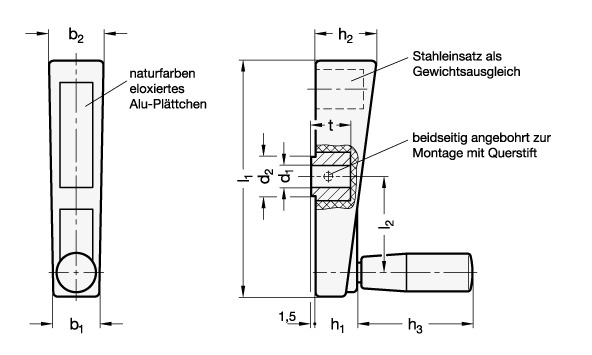

Attributes
Borehole d1
B 8
Borehole filtercolumn
8
Crank length l1
65
L2
23
Material
KU - Plastic
RoHS
Ja
Weight
0.095 kg
b1
19
b2
22
d2
13
h1
18
h2
23
h3
40
h3 ≈
40
tmin.
13
Ø Cylinder handle
18
Ø Zylindergriff
18
