Hand crank
GN 570.2-100-B12 Elesa 44313PA - Kunststoff
PA - plastic
Item-no.: 1164058Supplier number: 570.2-100-B12customs tariff number: 84879090EAN: 4045525520332
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Cranked handles GN 570.2 are connected to a shaft by means of a cross pin. Owing to the small, non-protruding steel bushing, these cranked handles are lower priced than GN 570.

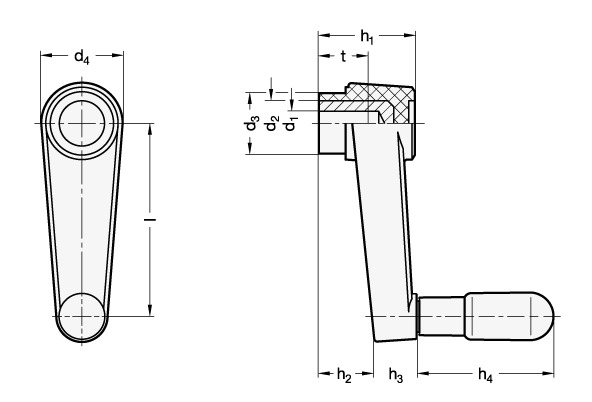

Attributes
Borehole d1
B 12
Borehole filtercolumn
12
Crank length l
100
Material
PA - plastic, polyamide
RoHS
Ja
Weight
0.158 kg
d2
18
d3
24
d4
33.5
h1
40.5
h2
25
h3
14
h4
65
h4 ≈
65
tmin.
22
Ø Cylinder handle
22
Ø Zylindergriff
22
