Hand crank
GN 570.2-130-B14 Elesa 44413PA - Kunststoff
PA - plastic
Item-no.: 1206177Supplier number: 570.2-130-B14customs tariff number: 84879090EAN: 4045525520349
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Cranked handles GN 570.2 are connected to a shaft by means of a cross pin. Owing to the small, non-protruding steel bushing, these cranked handles are lower priced than GN 570.

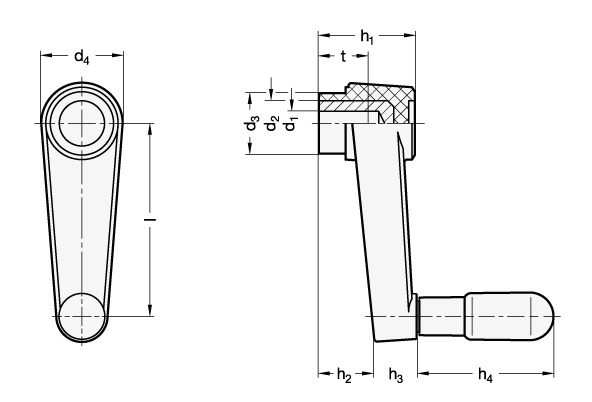

Attributes
Borehole d1
B 14
Borehole filtercolumn
14
Crank length l
130
Material
PA - plastic, polyamide
RoHS
Ja
Weight
0.334 kg
d2
26
d3
34
d4
39
h1
49
h2
34
h3
15
h4
65
h4 ≈
65
tmin.
28
Ø Cylinder handle
22
Ø Zylindergriff
22
