Hand crank
GN 570.2-64-B8 Elesa 44113PA - Kunststoff
PA - plastic
Item-no.: 1206180Supplier number: 570.2-64-B8customs tariff number: 84879090EAN: 4045525520318
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Cranked handles GN 570.2 are connected to a shaft by means of a cross pin. Owing to the small, non-protruding steel bushing, these cranked handles are lower priced than GN 570.

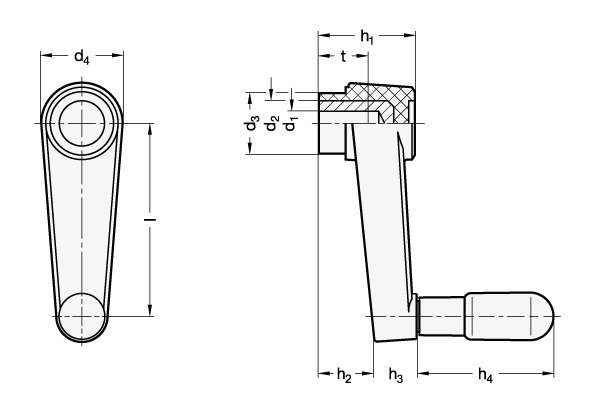

Attributes
Borehole d1
B 8
Borehole filtercolumn
8
Crank length l
64
Material
PA - plastic, polyamide
RoHS
Ja
Weight
0.083 kg
d2
15
d3
20
d4
26.5
h1
31.5
h2
17.5
h3
13.5
h4
45
h4 ≈
45
tmin.
18
Ø Cylinder handle
16
Ø Zylindergriff
16
