Hand crank
GN 570.2-80-B10 Elesa 44213PA - Kunststoff
PA - plastic, polyamide
Item-no.: 1206181Supplier number: 570.2-80-B10customs tariff number: 84879090EAN: 4045525520325
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Cranked handles GN 570.2 are connected to a shaft by means of a cross pin. Owing to the small, non-protruding steel bushing, these cranked handles are lower priced than GN 570.
Attributes

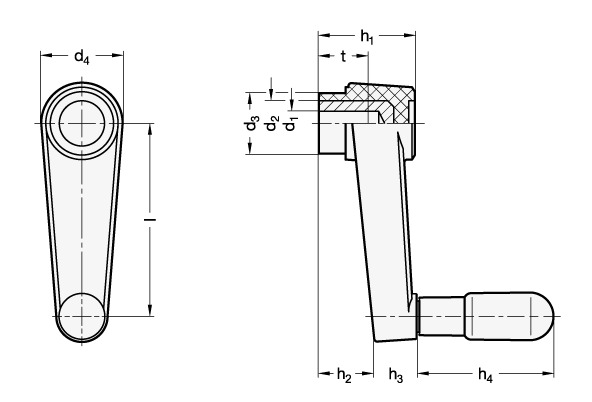

Borehole d1
B 10
Borehole filtercolumn
10
Crank length l
80
Material
PA - plastic, polyamide
RoHS
Ja
Weight
0.135 kg
d2
18
d3
24
d4
30
h1
37
h2
23.5
h3
13.5
h4
60
h4 ≈
60
tmin.
23
Ø Cylinder handle
18
Ø Zylindergriff
18
