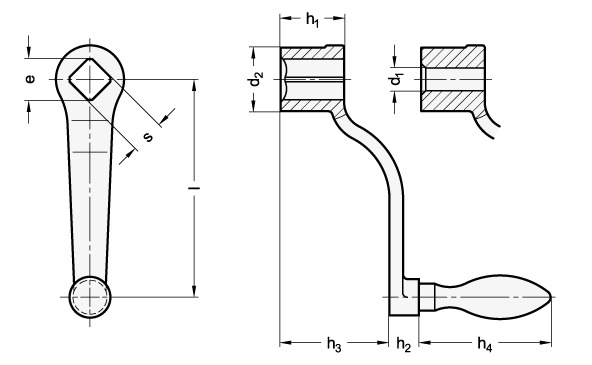

Crank handle cranked
DIN 468-125-B10-D Bore, handle rotatableGGG - Gusseisen (GGG)
Item-no.: 1203424Supplier number: DIN 468-125-B10-Dcustoms tariff number: 84879059EAN: 4045525255913
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The hub bores d1 H7 are not provided for in the official standard sheet.
Attributes
Bore identification
B - Bore
Borehole d1
B 10
Borehole filtercolumn
10
Form
D - with swivelling handle
Form F
72
Length l
125
Material
GGG - Cast iron (GGG)
RoHS
Ja
Weight
0.477 kg
d2
34
h1
34
h2
14
h3
55
h3 ≈
55
h4 Form D
76
h4 ≈Form D
76
Ø Ball handle
22
