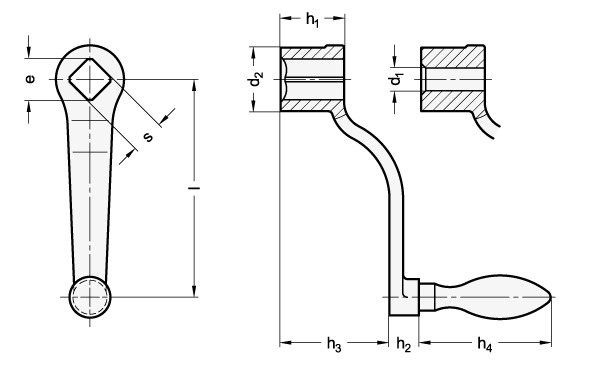

Crank handle cranked
DIN 468-200-B17-F Bore, handle fixedGGG - Gusseisen (GGG)
Item-no.: 1203432Supplier number: DIN 468-200-B17-Fcustoms tariff number: 84879059EAN: 4045525256231
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The hub bores d1 H7 are not provided for in the official standard sheet.
Attributes
Bore identification
B - Bore
Borehole d1
B 17
Borehole filtercolumn
17
Form
F - with fixed handle
Form F
90
Length l
200
Material
GGG - Cast iron (GGG)
RoHS
Ja
Weight
1.043 kg
d2
44
h1
44
h2
21
h3
78
h3 ≈
78
h4 Form D
96.5
h4 ≈Form D
96.5
Ø Ball handle
28
