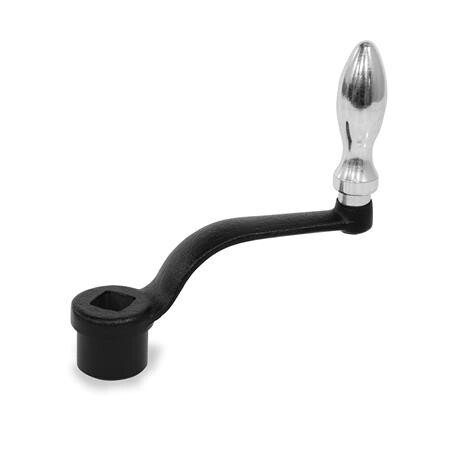

Crank handle cranked
DIN 468-200-V22-D Square, swivelling handleGGG - Gusseisen (GGG)
Item-no.: 1075776Supplier number: DIN 468-200-V22-Dcustoms tariff number: 84879059EAN: 4045525256408
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The hub bores d1 H7 are not provided for in the official standard sheet.
Attributes
(Spalte 2)
28.2
Bore identification
V - with square DIN 79
Borehole filtercolumn
17
Form
D - with swivelling handle
Form F
90
Length l
200
Material
GGG - Cast iron (GGG)
RoHS
Ja
Square s
V 22
Weight
1.000 kg
d2
44
h1
44
h2
21
h3
78
h3 ≈
78
h4 Form D
96.5
h4 ≈Form D
96.5
Ø Ball handle
28
