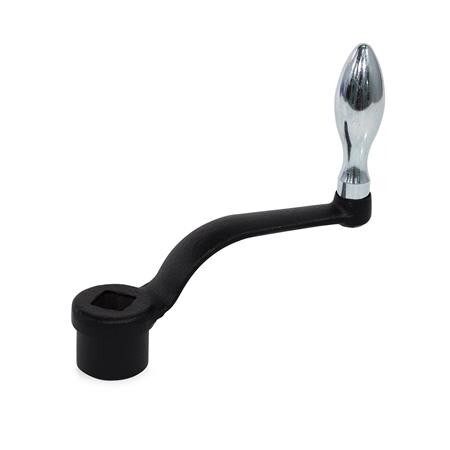

Crank handle cranked
DIN 468-80-V12-F Square, fixed handleGGG - Gusseisen (GGG)
GGG - Cast iron (GGG)
Item-no.: 1203453Supplier number: DIN 468-80-V12-Fcustoms tariff number: 84879059EAN: 4045525256965
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The hub bores d1 H7 are not provided for in the official standard sheet.
Attributes
(Spalte 2)
16.1
Bore identification
V - with square DIN 79
Borehole filtercolumn
8
Form
F - with fixed handle
Form F
56
Length l
80
Material
GGG - Cast iron (GGG)
RoHS
Ja
Square s
V 12
Weight
0.173 kg
d2
24
h1
24
h2
13
h3
38
h3 ≈
38
h4 Form D
61
h4 ≈Form D
61
Ø Ball handle
18
