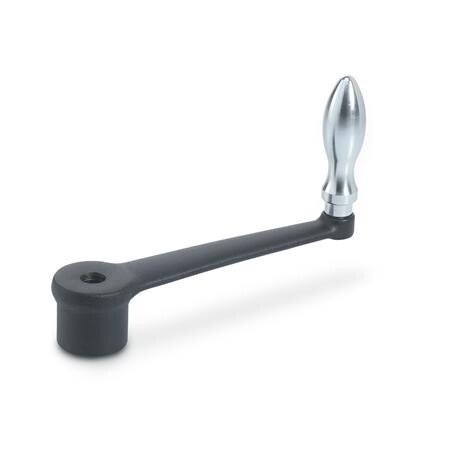

Hand crank straight
DIN 469-100-B10-D Bore, handle rotatableGGG - Gusseisen (GGG)
Item-no.: 1203454Supplier number: DIN 469-100-B10-Dcustoms tariff number: 84879059EAN: 4045525258402
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The hub bores d1 H7 are not provided for in the official standard sheet.
Attributes
Bore identification
B - Bore
Borehole d1
B 10
Borehole filtercolumn
10
Form
D - with swivelling handle
Form F
64
Length I
100
Material
GGG - Cast iron (GGG)
RoHS
Ja
Weight
0.311 kg

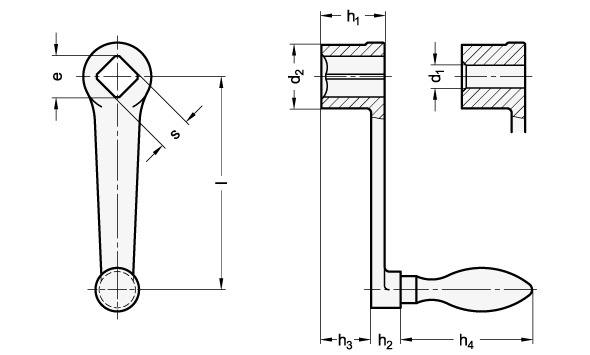

d2
28
h1
28
h2
13
h3
21
h3 ≈
21
h4 Form D
67
h4 ≈Form D
67
Ø Ball handle
20
