Hand crank straight
DIN 469-100-V12-F Square, fixed handleGGG - Gusseisen (GGG)
Item-no.: 1203457Supplier number: DIN 469-100-V12-Fcustoms tariff number: 84879059EAN: 4045525258518
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The hub bores d1 H7 are not provided for in the official standard sheet.

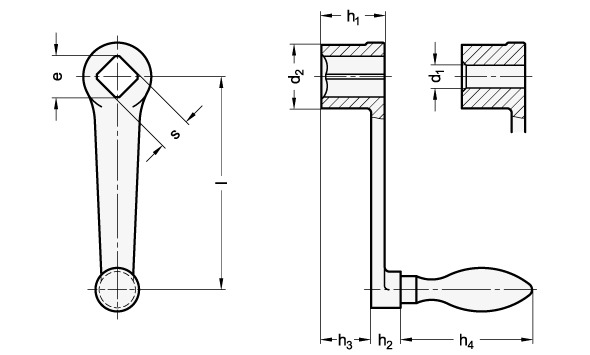

Attributes
Bore identification
V - with square DIN 79
Borehole filtercolumn
10
Form
F - with fixed handle
Form F
64
Length I
100
Material
GGG - Cast iron (GGG)
RoHS
Ja
Square s
V 12
Weight
0.290 kg
d2
28
e min.(column 1)
16.1
h1
28
h2
13
h3
21
h3 ≈
21
h4 Form D
67
h4 ≈Form D
67
Ø Ball handle
20
