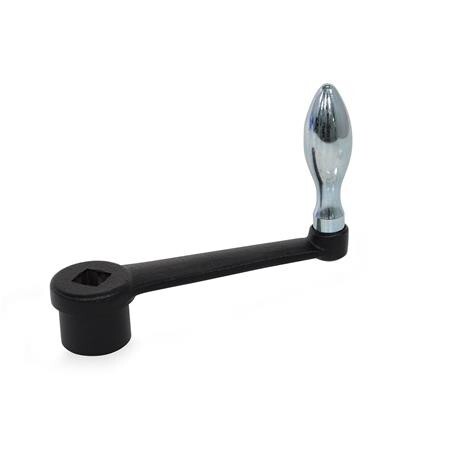

Hand crank straight
DIN 469-160-V19-F Square, fixed handleGGG - Gusseisen (GGG)
Item-no.: 1203469Supplier number: DIN 469-160-V19-Fcustoms tariff number: 84879059EAN: 4045525258914
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The hub bores d1 H7 are not provided for in the official standard sheet.

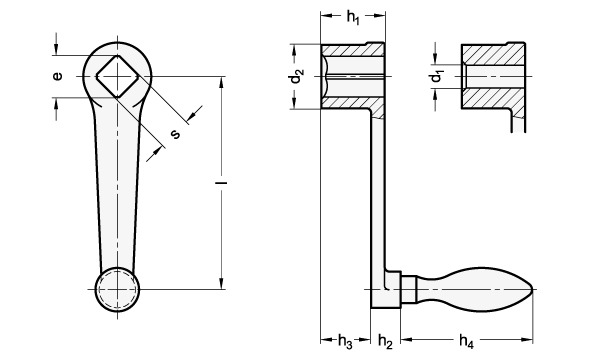

Attributes
(Spalte 2)
25.2
Bore identification
V - with square DIN 79
Borehole filtercolumn
14
Form
F - with fixed handle
Form F
80
Length I
160
Material
GGG - Cast iron (GGG)
RoHS
Ja
Square s
V 19
Weight
0.650 kg
d2
38
h1
38
h2
14
h3
29
h3 ≈
29
h4 Form D
83
h4 ≈Form D
83
Ø Ball handle
25
