Hand crank straight
DIN 469-200-V19-F Square, fixed handleGGG - Gusseisen (GGG)
Item-no.: 1203472Supplier number: DIN 469-200-V19-Fcustoms tariff number: 84879059EAN: 4045525259058
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The hub bores d1 H7 are not provided for in the official standard sheet.

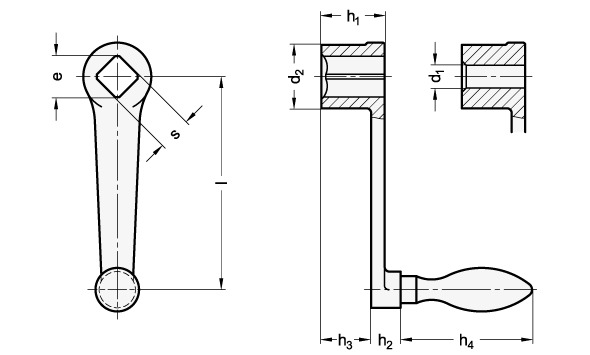

Attributes
Bore identification
V - with square DIN 79
Borehole filtercolumn
17
Form
F - with fixed handle
Form F
90
Length I
200
Material
GGG - Cast iron (GGG)
RoHS
Ja
Square s
V 19
Weight
1.015 kg
d2
44
e min.(column 1)
25.2
h1
44
h2
21
h3
34
h3 ≈
34
h4 Form D
96.5
h4 ≈Form D
96.5
Ø Ball handle
28
