Hand crank straight
DIN 469-250-V22-D Square, swivelling handleGGG - Gusseisen (GGG)
Item-no.: 1203477Supplier number: DIN 469-250-V22-Dcustoms tariff number: 84879059EAN: 4045525259201
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The hub bores d1 H7 are not provided for in the official standard sheet.

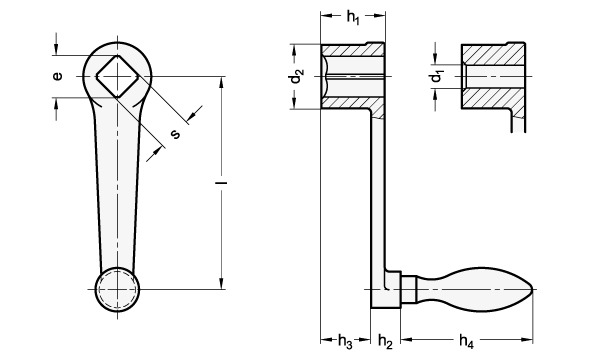

Attributes
Bore identification
V - with square DIN 79
Borehole filtercolumn
17
Form
D - with swivelling handle
Form F
100
Length I
250
Material
GGG - Cast iron (GGG)
RoHS
Ja
Square s
V 22
Weight
1.480 kg
d2
48
e min.(column 1)
28.2
h1
48
h2
21
h3
36
h3 ≈
36
h4 Form D
105.5
h4 ≈Form D
105.5
Ø Ball handle
32
