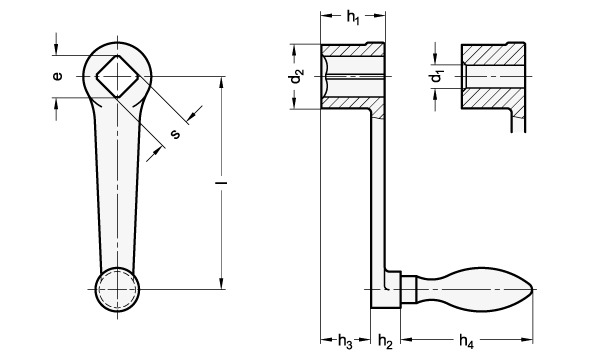

Hand crank straight
DIN 469-80-B8-D Bore, handle rotatableGGG - Gusseisen (GGG)
Item-no.: 1203485Supplier number: DIN 469-80-B8-Dcustoms tariff number: 84879059EAN: 4045525259461
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The hub bores d1 H7 are not provided for in the official standard sheet.
Attributes
Bore identification
B - Bore
Borehole d1
B 8
Borehole filtercolumn
8
Form
D - with swivelling handle
Form F
56
Length I
80
Material
GGG - Cast iron (GGG)
RoHS
Ja
Weight
0.240 kg
d2
24
h1
24
h2
13
h3
18
h3 ≈
18
h4 Form D
61
h4 ≈Form D
61
Ø Ball handle
18
