Hand crank straight
DIN 469-80-V10-D Square, swivelling handleGGG - Gusseisen (GGG)
Item-no.: 1203487Supplier number: DIN 469-80-V10-Dcustoms tariff number: 84879059EAN: 4045525259492
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The hub bores d1 H7 are not provided for in the official standard sheet.

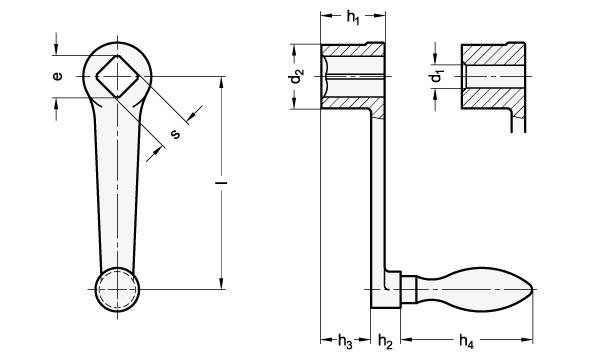

Attributes
Bore identification
V - with square DIN 79
Borehole filtercolumn
8
Form
D - with swivelling handle
Form F
56
Length I
80
Material
GGG - Cast iron (GGG)
RoHS
Ja
Square s
V 10
Weight
0.200 kg
d2
24
e min.(column 1)
13.1
h1
24
h2
13
h3
18
h3 ≈
18
h4 Form D
61
h4 ≈Form D
61
Ø Ball handle
18
