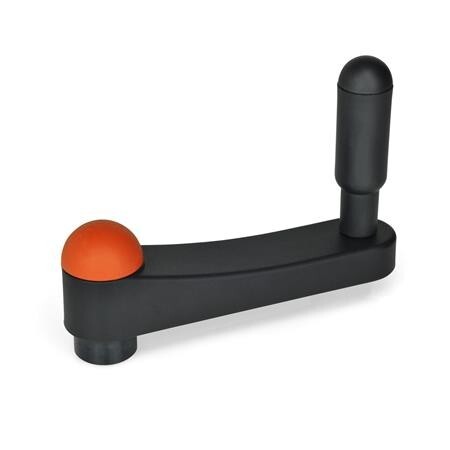

Hand crank with hole
GN 670-100-B12-DOR Elesa 210241-C2PA - Kunststoff
PA - plastic, polyamide
Item-no.: 1211147Supplier number: 670-100-B12-DORcustoms tariff number: 84879090EAN: 4045525350915
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The design of the cranked handles GN 670 matches the product family Ergostyle®. The protruding steel bushing ensures an accurate bore and square to bore face. It can be retained with a pin or a retaining screw. The link between the cranked handle and shaft can be established either with a keyway or a follower pin.
Attributes
Borehole d1
B 12
Borehole filtercolumn
12
Colour cover cap
DOR - orange, RAL 2004, matt
Crank length Length l
100
Material
PA - plastic, polyamide
RoHS
Ja
Weight
0.200 kg

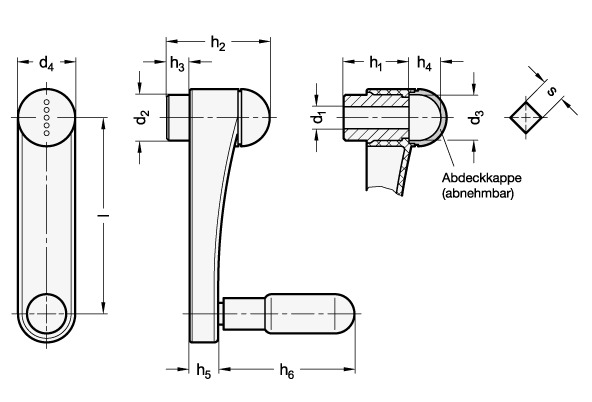

d2
24
d3
23.5
d4
30
h1
33
h2
52.5
h3
10
h4
17
h5
16
h6
65
h6 ≈
65
Ø Cylinder handle
22
Ø Zylindergriff
22
